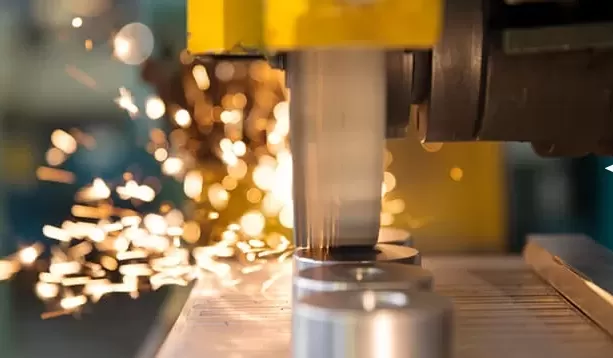

What Is the Machining Accuracy of the Precision Surface Grinding Process? What Tolerance Levels Can Be Achieved?

In the world of manufacturing, precision is paramount. For B2B clients seeking high-quality components, understanding the accuracy and tolerances of precision surface grinding processes is crucial. This article delves into the principles, types, and comparative advantages of precision surface grinding, providing a comprehensive overview for businesses aiming to achieve superior results.

Precision surface grinding is renowned for its ability to produce extremely flat surfaces with tight tolerances. By exploring the principles behind this process, the various types of grinding, and the specific tolerances achievable, we aim to provide a clear understanding of why precision surface grinding is a preferred choice in many industries.

Principles of Precision Surface Grinding Services

Precision surface grinding involves the use of a rotating abrasive wheel to remove material from a workpiece, creating a flat surface. The process is characterized by its ability to achieve high levels of accuracy and surface finish. Key principles include the selection of appropriate grinding wheels, the control of grinding parameters, and the maintenance of machine stability. By carefully balancing these factors, manufacturers can achieve the desired surface quality and dimensional accuracy. The process also involves continuous monitoring and adjustments to ensure consistency and repeatability, which are critical for meeting stringent industry standards.

What are the Four Types of Precision Surface Grinding?

There are four primary types of precision surface grinding: horizontal-spindle surface grinding, vertical-spindle surface grinding, single-disk grinding, and double-disk grinding. Horizontal-spindle surface grinding, the most common type, uses a rotating wheel to grind the surface of the workpiece. Vertical-spindle surface grinding, on the other hand, involves a vertical spindle and is often used for larger workpieces. Single-disk grinding uses one abrasive disk, while double-disk grinding employs two, allowing for simultaneous grinding of both sides of a workpiece. Each type has its specific applications and advantages, making it essential to choose the right method based on the material and desired outcome.

What is the Accuracy of Grinding Processes?

The accuracy of grinding processes is influenced by several factors, including the type of grinding wheel, the material of the workpiece, and the precision of the grinding machine. Typically, precision surface grinding can achieve tolerances within the range of ±0.001 inches (±0.025 mm). Advanced grinding machines equipped with high-precision spindles and control systems can achieve even tighter tolerances. The accuracy is also dependent on the skill of the operator and the quality of the grinding wheel, which must be regularly dressed to maintain its sharpness and shape.

What is the Tolerance for Precision Grinding?

Tolerance in precision grinding refers to the permissible limit of variation in a physical dimension. For precision surface grinding, tolerances can be as tight as ±0.0001 inches (±0.0025 mm). Achieving such tight tolerances requires meticulous control of the grinding process, including the selection of the right abrasive material, the maintenance of optimal grinding conditions, and the use of advanced measurement techniques. These tight tolerances are essential for applications where even the slightest deviation can impact the performance and functionality of the final product.

Surface Grinding vs Reciprocating Grinding

Surface grinding and reciprocating grinding are two common methods used to achieve flat surfaces. Surface grinding involves a rotating abrasive wheel, while reciprocating grinding uses a back-and-forth motion of the workpiece. Surface grinding is generally preferred for its ability to produce finer finishes and tighter tolerances. Reciprocating grinding, however, can be more efficient for larger workpieces or when a high material removal rate is required. The choice between the two methods depends on the specific requirements of the project, including the desired surface finish, tolerance, and production volume.
