Electrical Discharge

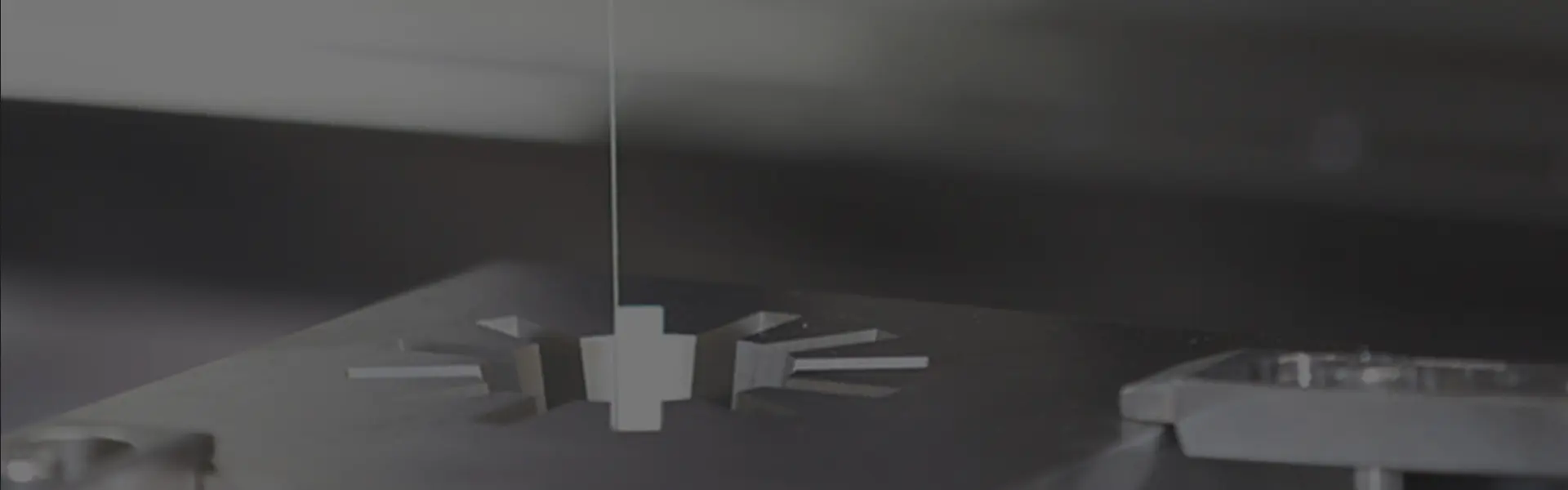

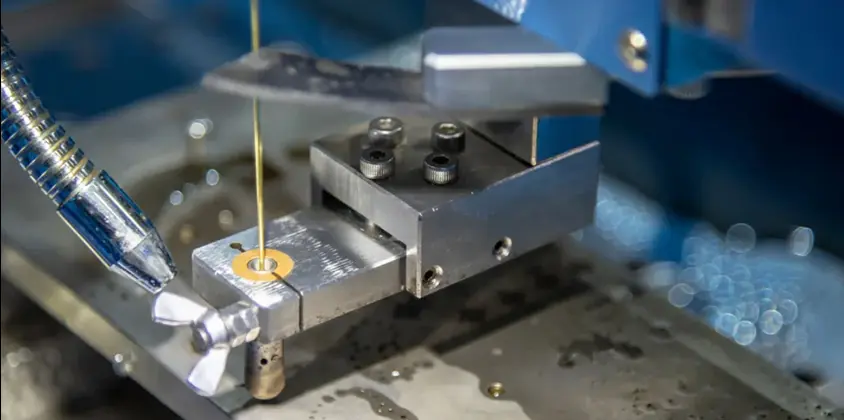

WEDM uses a thin, electrically charged wire (typically made of brass or other conductive materials) as an electrode. This wire is continuously fed through the machine.
Material Removal

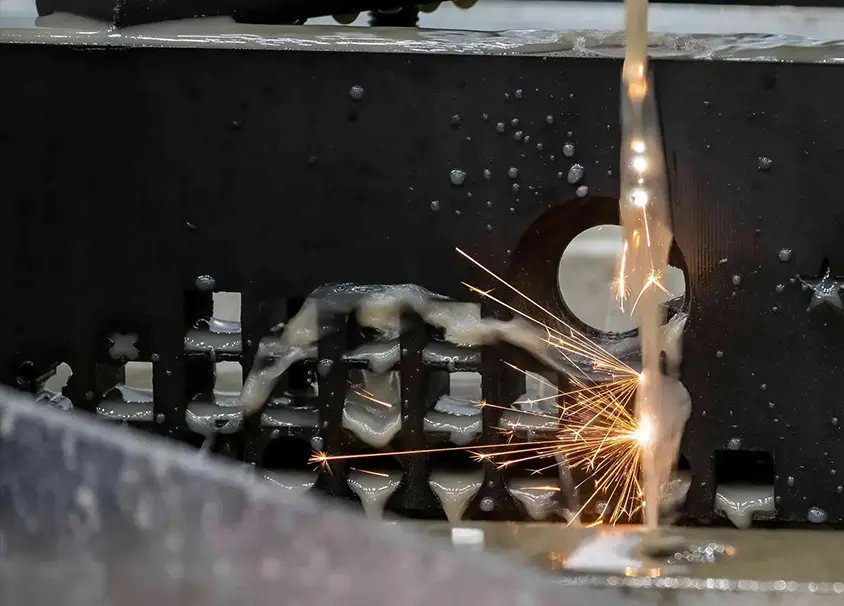

When the wire approaches the workpiece, electrical discharges (sparks) occur between the wire and the workpiece. These sparks create intense heat, which melts and vaporizes small portions of the material, thereby cutting through it.
No Contact
The wire does not actually touch the workpiece. The cutting process happens through the electrical discharges in a dielectric fluid (usually deionized water), which also serves to cool the area and flush away debris.
Precision Cutting
WEDM is known for its ability to produce very precise cuts, with tolerances as tight as ±0.0001 inches. It is ideal for creating intricate and delicate shapes in hard materials that would be difficult or impossible to machine using traditional methods.
ANOK provides comprehensive EDM / WEDM machining services.

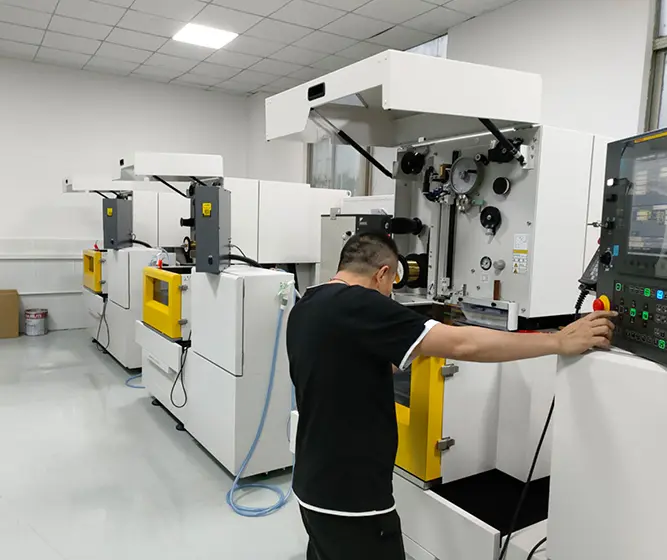

We have a modern machinery, which allows us to provide all our services with the highest precision and professionalism. We handle the machining of electrical conductor materials such as carbide, graphite, colored metals.
We also work with acid resistant and stainless steel, aluminum, copper, bronze and brass. Wire cutting also includes machining of hardened, structural and tool steels.
Choose excellent-quality machinery to help with your machining needs, our engineers have rich experience working in the precision engineering industry. Full range of projects from small to large. Tight tolerance down to +/- 0.002 mm. ISO9001:2015 Certified.
Short lead time and proof of certifications and inspection reports with every order. We mind our customers' after-sale service.
Excellent customer service with clear communications and an instant online quote within 24-48 hours.
Cost-competitive in raw material considerations in a tough marketplace. We assist you with the most attractive prices.
By the advanced equipment and experienced technology, ANOK offer ultra-precision tolerances by Wire EDM machining, tolerance can be as tight as 0.003mm, perpendicularity can be 0.002~0.001mm, smallest hole diameter is 0.07mm, roughness can reach upto Ra0.8, for an array of industries and micromanufacturing applications. In our Wire EDM machining center , the Maximum diameter that we can make is 500mm, Maximum thickness is 400mm, that will meet your produce demands in measurements.

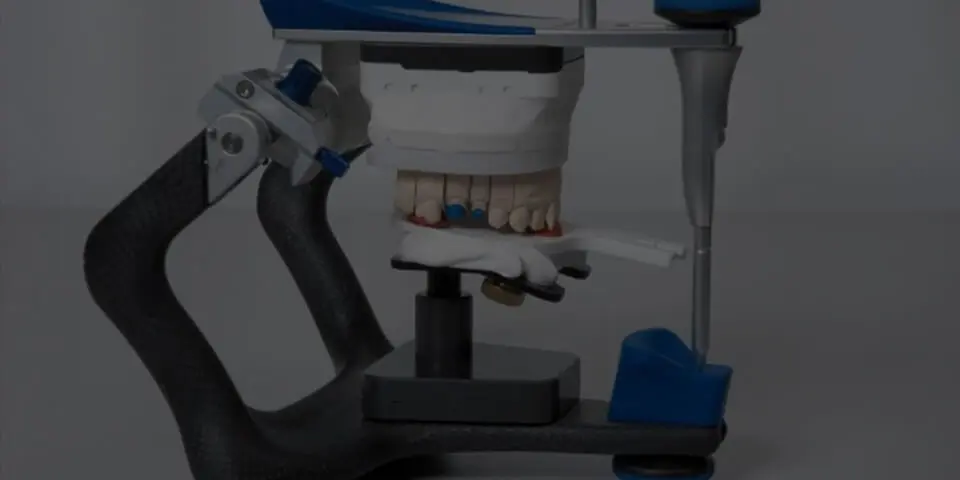

With high precision and versatility, Wire EDM machining is utilized in various industries, including aerospace, automotive, medical, automation and electronics est.

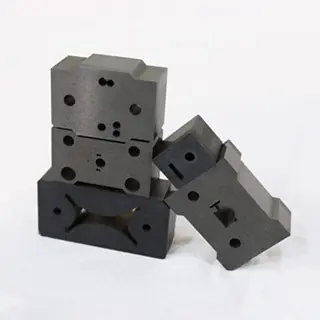

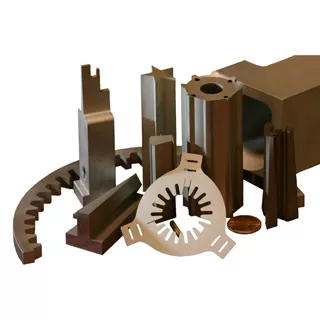

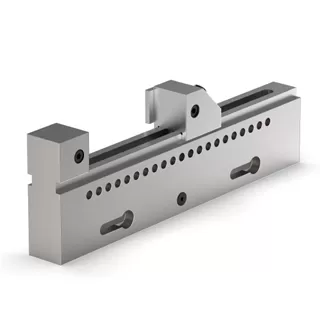

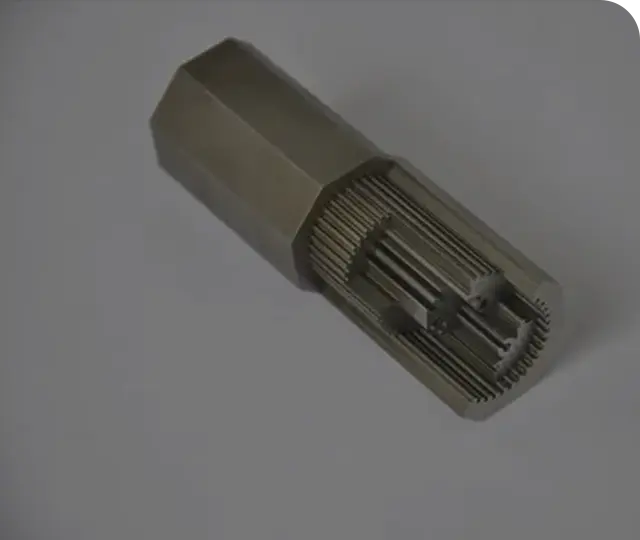

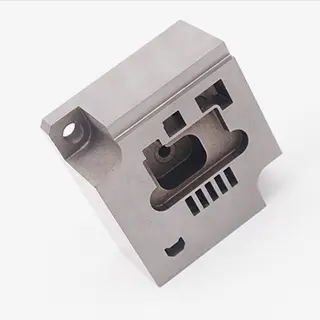

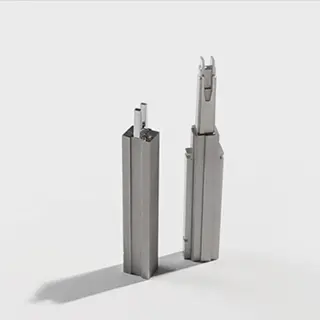

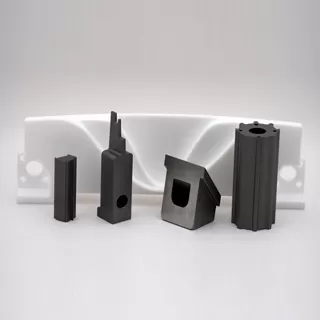

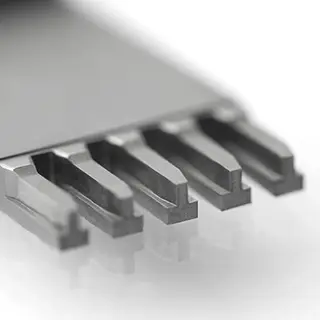

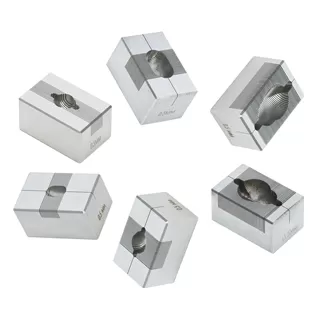

By the strict quality-control ,we got high impressive feedback and satisfaction from our customers . Here the gallery show some parts we made to our costomers that be permitted .
WEDM can achieve fine surface finishes, typically ranging from 8 to 32 micro-inches Ra, depending on the settings, wire type, and the specific application.
WEDM is more suited for prototyping, tool and die making, and low to medium-volume production, especially for parts requiring high precision. While it can be used for mass production, the process may be slower compared to other machining methods.
Common wire materials used in WEDM include brass, copper, zinc-coated brass, and molybdenum. The choice of wire depends on the material being cut and the specific requirements of the job.
Yes, WEDM machines can be highly automated, including features like CNC control, automated wire threading, and robotic workpiece handling, making them suitable for complex and repeatable operations.
The time required for a WEDM job depends on factors such as the complexity of the cut, the thickness of the material, and the precision required. Simple cuts may take a few hours, while more complex or thicker parts may take several hours or even days.
